How Many Solar Panels Do I Need? A UK Sizing Guide

The right number of solar panels for a UK home depends on three things: how much electricity you use, how much roof space you have, and what you want the system to do — cover your daytime baseload, run a heat pump, charge an EV, or all three. This guide walks you through the calculation from your electricity bill to a panel count, with worked examples for different household types.

Not ready for a full roof array? Plug-in balcony solar lets you start with a single panel under 800W.

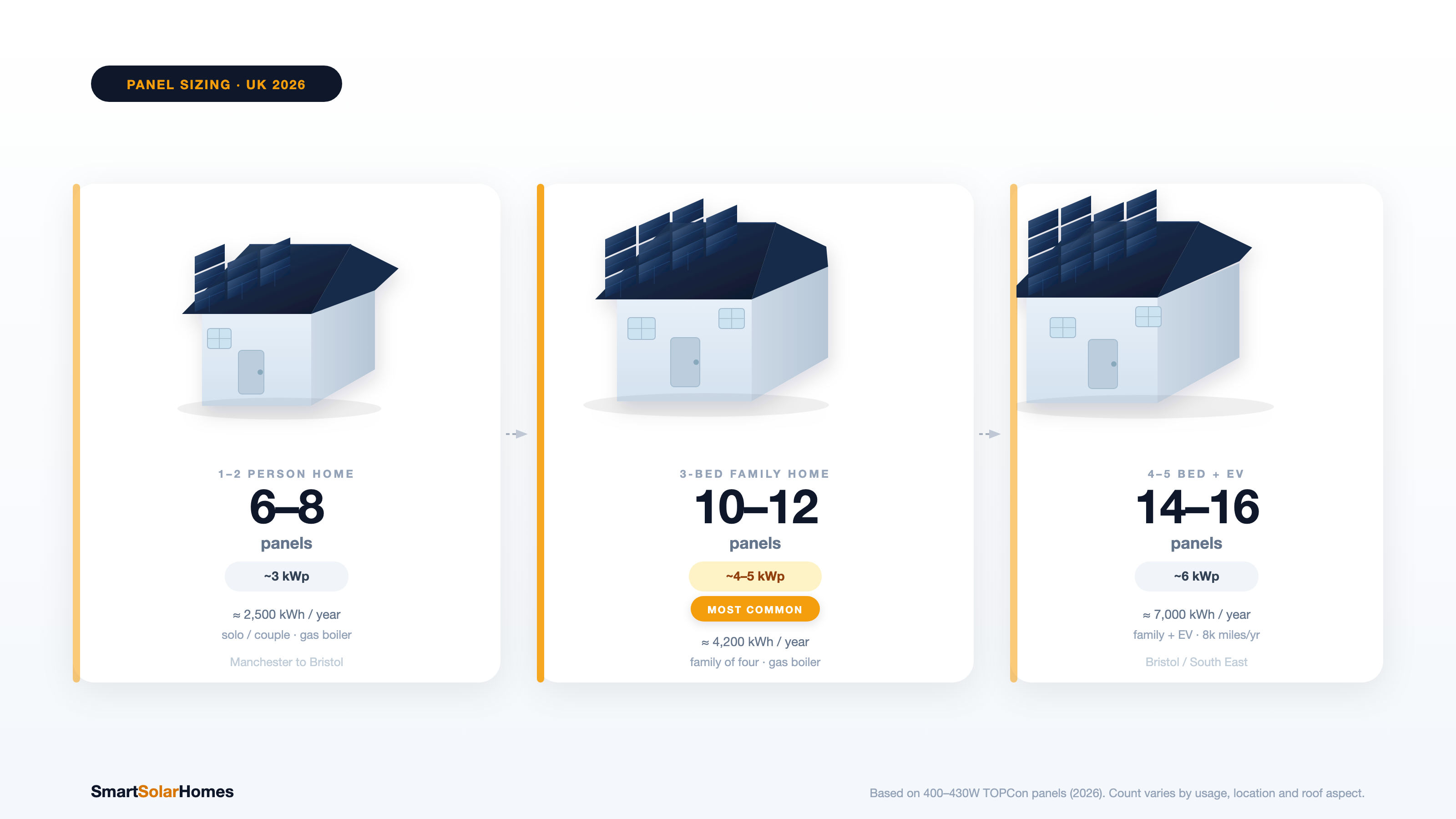

Quick answer for typical households

• Single occupant, no EV, no heat pump (1,800–2,500 kWh/year): 6–8 panels (around 2.5–3.0 kWp)
• Family of four, no EV, gas boiler (3,500–4,500 kWh/year): 10–12 panels (around 4.0–5.0 kWp)
• Family with one EV doing 8,000 miles/year (5,500–7,000 kWh/year): 13–16 panels (around 5.5–6.5 kWp)
• Family with EV and heat pump (8,000–12,000 kWh/year): 16–22 panels (around 6.5–9.0 kWp)

"Panel count" assumes 400–430W panels (standard 2026 monocrystalline TOPCon). 350W older PERC panels would need roughly 15% more. 450W+ premium panels (REC Alpha, SunPower Maxeon, Aiko Neostar) need roughly 10% fewer.

Step 1: Work out your annual consumption

Look at your last 12 months of electricity bills. Most suppliers show annual consumption on the back page of the most recent statement or in your online account. UK households use a wide range — anywhere from 1,500 to 12,000 kWh/year — so don't rely on national averages.

If you only have a monthly figure, multiply by 12 if your home is broadly consistent. If you only have a couple of months, sense-check against Ofgem's medium-use benchmark of 2,700 kWh/year for a typical UK household.

If you're planning to add an EV or heat pump within the next two years, add an allowance. (For a full breakdown of which appliances consume the most, see our guide to what uses the most electricity at home.)

• One EV doing 8,000 miles/year, charged mostly at home: +2,200 kWh
• One EV doing 12,000 miles/year: +3,300 kWh
• Air-source heat pump replacing a gas boiler in an average semi: +3,500–4,500 kWh (the gas demand reduces but is replaced by smaller electricity demand at a higher SCOP)
• Air-source heat pump in a well-insulated home: +2,500–3,500 kWh

Step 2: Match generation to consumption

A south-facing 1kWp system in central England generates roughly 900–950 kWh per year — for the full breakdown of how much electricity your panels will generate by system size and region, see our dedicated output guide. South-east England and the south coast see 1,000–1,050. Scotland and northern England see 800–880. The regional output breakdown covers this in detail.

For sizing, work backwards from your consumption to generation, then adjust for self-consumption realism.

Self-consumption matters more than total generation. If you're not sure why that is, our explainer on how solar panels work covers how generation feeds your home in real time. Without a battery, a typical UK household uses only around 30% of the solar it generates at the time it's generated; the rest is exported at SEG rates (supplier-set, typically around 3–15p/kWh depending on tariff). With a battery, self-consumption typically rises to around 65%.

The right size, in practice:

• To cover roughly 100% of annual consumption on paper: kWp ≈ annual kWh ÷ 900 (Midlands) or ÷ 1,000 (South East). For a 4,000 kWh household that's a 4–4.5 kWp system.
• To maximise self-consumption without over-sizing: aim for a system that just exceeds typical summer daytime baseload, with surplus going to a battery or EV. A 4–6 kWp system covers most non-electrified UK homes.
• If you plan to electrify (EV, heat pump): add the future demand to your current usage before sizing. Retrofitting more panels later costs more per kWp than oversizing on day one.

Before approaching installers you can get a free building-specific generation estimate from UK alternatives to Google Project Sunroof — tools like Solar Wizard and PVGIS will tell you how many kWh your specific roof is likely to produce before you commit to anything.

Step 3: Check your roof can take it

A standard 430W panel measures roughly 1.72m × 1.13m — call it 2.0 m². You need around 2.5 m² per panel once you allow for clip spacing, edge clearances, and access corridors required by Building Control.

Roof area you can actually use is normally 50–70% of the full roof slope area, after deducting:

• 0.3–0.5m setback from ridge and eaves
• 0.3–0.5m setback from gable verges
• Chimneys, vents, dormers, and shading from any feature
• Skylights and roof windows

Rough check: a 30 m² south-facing pitch can typically take 12–14 panels (about 5–6 kWp). A 20 m² pitch fits 8–10 panels (3.2–4.0 kWp). If your largest pitch can't accommodate your target capacity, you can split across two pitches — but east/west splits need optimisers or microinverters to handle the orientation difference cleanly. For guidance on how orientation affects yield across the full range of roof directions, see our explainer on roof orientation and solar panels in the UK. For the full method — panel dimensions, working out your usable area, measuring your roof and laying panels out — see our guide to solar panel dimensions and roof layout. Flat roofs are a special case: because the roof is level you choose the orientation and tilt yourself, which changes how many panels fit — see our guide to flat roof solar panels.

Worked examples

Example 1 — single occupant, no EV, terraced house

Annual usage: 2,000 kWh. South-facing roof, 18 m² usable, in Manchester. PVGIS generation: ~880 kWh/kWp/year.

Sizing for self-consumption rather than full coverage: a 3 kWp system (8 × 380W or 7 × 430W panels) generates roughly 2,640 kWh/year. Without a battery, around 1,000–1,200 kWh self-consumed; the rest exported at SEG rates.

Estimated cost: £4,800–£6,500. Payback at current grid prices: 9–11 years.

Example 2 — family of four, no EV, gas heating

Annual usage: 4,200 kWh. South-facing main roof 25 m² usable, plus a 12 m² west-facing extension roof. Location: Reading. PVGIS: ~1,000 kWh/kWp/year south-facing, ~830 west.

10 × 430W panels on the main pitch (4.3 kWp) + 6 × 430W on the extension (2.6 kWp west-facing) = 6.9 kWp installed. Annual generation around 5,750 kWh. With a 10kWh battery, self-consumption sits in the 70–80% range.

Estimated cost: £10,500–£13,500 with battery. Payback: 8–11 years.

Example 3 — family with EV (12,000 miles/year), semi-detached

Annual usage: 7,000 kWh including EV. South-east-facing main roof 30 m². Location: Bristol. PVGIS: ~990 kWh/kWp/year.

14 × 430W panels (6.0 kWp). Annual generation around 5,950 kWh — under their usage but covers the largest predictable summer EV charging window. With a smart EV charger using solar divert (e.g. Zappi), summer daytime EV charging is essentially free. See best EV chargers for solar.

Estimated cost: £9,000–£11,500 panels-only; £13,500–£17,500 with battery. Payback: 8–10 years.

Example 4 — heat pump household, detached

Annual usage: 10,500 kWh (heat pump + standard demand). South + south-west aspect, 45 m² combined usable. Location: Oxford. PVGIS: ~1,000 kWh/kWp/year south-facing, ~950 south-west.

20 × 440W panels (8.8 kWp) split across both pitches with DC optimisers or microinverters. Annual generation around 8,500 kWh. Self-consumption with a 13.5 kWh battery: 65–75%.

Estimated cost: £13,500–£18,000 panels-only; £18,500–£24,000 with battery. Payback: 9–12 years, accelerated if grid prices rise.

How adding a battery changes the sizing decision

A battery doesn't change how many panels you should fit — it changes how much of what they produce you actually use. Without a battery, oversizing panels past around 1 kWp per 1,000 kWh of consumption sees diminishing returns: the extra summer surplus is exported at low SEG rates. With a battery, you can productively use more of a larger system. See home battery storage for the full picture.

The 3.68 kW per-phase G98 limit

Single-phase UK domestic supplies (which is most homes) can self-notify the DNO via G98 for installations up to 3.68 kW per phase of inverter output. Above that, you need G99 prior approval, which adds £200–£500 in fees and several weeks to the timeline.

Most installs above 4 kWp deal with this in one of two ways: (1) install a hybrid inverter that limits its export to 3.68 kW even though more is generated (the excess is clipped or self-consumed), or (2) install a multi-string inverter that doesn't exceed the limit on its AC output even with 5–6 kWp DC. If you're going beyond 5 kWp, the G99 route is usually worth it for unconstrained operation.

Three-phase supplies (rare in UK homes but common in newer builds and conversions) raise the G98 ceiling considerably — up to 11.04 kW combined across three phases.

Future-proofing: why a slightly bigger system usually wins

Retrofitting more panels later costs roughly 50% more per kWp than installing them on day one — separate scaffolding, separate DNO notification, separate sign-off. If you can fit one more panel string for an extra £400–£600 today, it's almost always worth it. The upfront premium pays back in 2–4 years and you avoid a second scaffolding bill.

This is doubly true if you're considering an EV or heat pump in the next five years. Today's 4 kWp household is tomorrow's 7 kWp household, and replacing a string inverter to handle more capacity is expensive.

Where to go next

For an estimate sized to your actual roof and usage, the solar planner takes a postcode and usage figure and returns a recommended kit with indicative costs. For a deeper modelling of savings, the savings calculator covers self-consumption, SEG income, and battery interaction. When you're ready, request MCS-certified installer quotes.

Your location also affects output — not just cost. Read about local irradiation and regional output differences across the UK.

For homes with high consumption or large roofs, our guide explains when a 10kW system makes sense.

For a typical 3-bed semi, our 4kW system sizing guide explains what you'll generate and what it costs.

Larger 4–5 bed homes typically need more capacity — read our 5kW system sizing guide for larger homes.

The number of panels you can fit also depends on your roof construction — see our guide to how your roof type affects panel count.

Conservatories have limited roof area and specific weight constraints — see our guide to conservatory roof solar panel sizing.

Homes with limited roof space have specific constraints — our guide to solar panels for small roofs covers how to maximise output per m².

Our sizing guide explains when an 8kW system is the right choice — typically large 5-bed homes or homes with EV and battery.

A 3kW system suits 1–2 person households or homes with only daytime occupation — our 3kW system sizing guide covers who it's right for.
