Solar Panel Dimensions & Roof Layout: How Many Fit?

There are two different questions hiding inside “how many solar panels should I get?” One is about demand — how much electricity you use, and therefore how much generation you want. The other is about supply — how many panels will physically fit on the roof you actually have. This guide is about the second one: solar panel dimensions, usable roof area, and layout. It is the spatial, hands-on side of sizing a system.

If you have not worked out your target system size yet, start with our guide to how many solar panels you need, which goes from your electricity bill to a panel count. Come back here to check that the number actually fits — or, if you are a hands-on type planning your own layout, to work out the ceiling before you get a single quote.

How big is a solar panel?

A typical residential solar panel in 2026 is about 1.76 m tall, 1.13 m wide and 30 mm deep — close to 2 square metres of glass — and weighs around 21 kg. Those numbers come straight from current manufacturer datasheets: a Trina Vertex S+ 440 W panel measures 1762 × 1134 × 30 mm and weighs 21.0 kg, and panels from Jinko, Longi and Aiko in the same 425–445 W class are all within a few millimetres and a kilogram of that.

This matters because panel size has crept up. The older 60-cell panels common a decade ago were roughly 1.65 m × 1.0 m (about 1.65 m²) and rated 250–330 W. Today's 108 half-cell panels are larger at about 1.76 m × 1.13 m, but pack 400–450 W into that area thanks to higher efficiency — modern panels convert around 21–23% of sunlight, which works out at roughly 220–230 watts per square metre. So if you are reading an old “a panel is about 1.6 metres” figure, nudge it up. For planning, use 1.76 × 1.13 m and 2 m² per panel as your working figure unless you already know the exact model.

How much usable roof do you actually have?

The mistake here is counting your whole roof. The number that matters is the usable area, which is always smaller, for two reasons: margins and obstructions.

Margins. Panels are not laid right up to the edge of the roof. The UK installation standard, MCS MIS 3002, says modules should not normally be mounted within 400 mm of any roof edge — the eaves, the ridge and the gable verges — unless extra fixings are used, because the edge zone takes the worst of the wind uplift. So before you count anything, mentally draw a 400 mm border around each roof plane and work inside it.

Obstructions. Chimneys, soil-vent pipes, bathroom and boiler flues, roof windows (Velux), dormers and satellite dishes all carve holes out of the usable area — and you also want to keep panels out of the shadow those things cast, which is usually a bigger loss than the area they take up. Subtract them before you count rows.

As a sanity check on the final figure, the Energy Saving Trust notes that a typical 3.5 kWp home system uses six to twelve panels and covers roughly 10–20 m² of roof. That lands at about 5–6 m² of roof per kWp once you allow for the gaps and margins — not the “8 m² per kWp” you'll still see quoted, which dates from the lower-power panels of the early 2010s and now over-estimates the space you need.

How to measure your roof without climbing on it

You do not need to get on the roof to get a workable estimate. Three methods, best used together:

1. Satellite area tool. On Google Maps (desktop), right-click a corner of your roof, choose “Measure distance”, then click round the outline of one roof plane; it reports the area in square metres. The catch: an aerial photo shows the plan (flattened) area, not the true sloped area. A pitched roof is bigger than its footprint, so you must correct for the slope.

2. The pitch correction. The true sloped length equals the flat (plan) length divided by the cosine of the roof pitch — or just multiply the plan area by a pitch factor: about 1.15 at 30°, 1.22 at 35°, 1.31 at 40° and 1.41 at 45°. Most UK pitched roofs sit around 35–45°, so a footprint of 30 m² is really 37–42 m² of roof. You can read the pitch with a phone level held against a rafter in the loft.

3. Count the tiles. This is the trick most people miss, and it is the most accurate from the ground with binoculars. Roof tiles are made to fixed sizes, so they are a built-in ruler. A common UK concrete interlocking tile such as Marley Modern has a 292 mm cover width and sits on courses about 345 mm apart (per Marley's technical data), so tiles-across × 0.292 m gives the plane's width and courses × 0.345 m gives its sloped height. Small plain tiles run about ten courses to the metre; natural slate courses are typically 200–215 mm apart. Counting beats guessing every time. Inside the loft, you can cross-check by counting rafter bays — UK rafters are spaced at 400 mm or 600 mm centres (a maximum of 600 mm under Building Regulations practice) — and measuring a rafter's length.

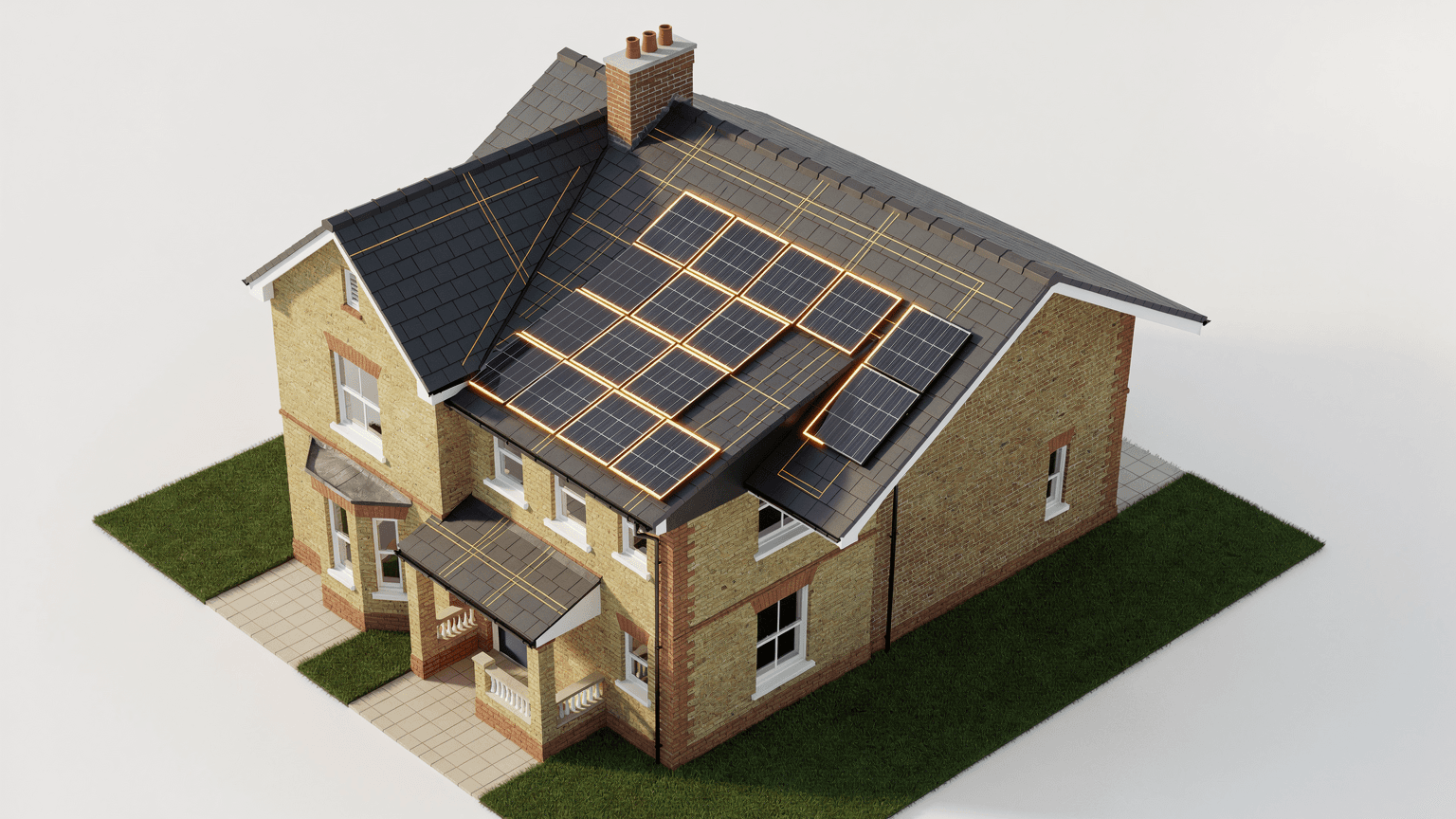

How many panels fit on a pitched roof?

Once you have the usable width and sloped height of a roof plane, the layout is a packing exercise. Panels are mounted in a grid, in either portrait (tall way up the slope) or landscape (wide way up), and you fit whichever orientation tiles the available rectangle most efficiently — it is genuinely worth sketching both. Between neighbouring panels you only lose a small clamp gap of around 10–20 mm, set by the mounting clamps, so for planning you can treat panels as butting almost edge to edge.

The method: take your usable width, divide by 1.15 m (a portrait panel plus its gap) to get the number of columns; take your usable sloped height, divide by 1.78 m to get the number of rows; multiply. Then multiply the panel count by the panel wattage to get system size in kWp. Do it for portrait and landscape and keep the higher count.

Laying panels out on a flat roof

Flat roofs play by different rules, and the headline is counter-intuitive: a flat roof usually fits fewer panels than its area suggests. Because the surface is level, panels have to be propped up on tilt frames to face the sun — and tilted rows cast shadows on the row behind them. To stop that self-shading in the low winter sun, you must leave a gap between rows, and those gaps eat into the space. A given flat roof might only end up half-covered in panels.

That row-spacing problem is exactly why a low-tilt, back-to-back east–west layout often fits more panels (and produces more total energy) on a flat roof than a spaced-out south-facing one. We cover that decision in detail in our guide to flat roof solar panels, including the mounting and the planning rules — worth reading before you commit a flat-roof layout. One useful myth-buster from that guide applies here too: the often-repeated “panels must sit a metre back from the roof edge” is not a permitted-development rule for homes.

Plan around the shade, not just the space

Where you place panels matters as much as how many you fit, because of how they are wired. Panels in a string are connected in series, so — as the Energy Saving Trust puts it — shading on one panel can drag down the output of the whole string, not just that panel. A roof area that is in shade for part of the day (under a chimney, behind a tall tree, or shadowed by a neighbour's house) is often better left empty than filled.

Modern panels fight back with bypass diodes built in, which let current route around a shaded section, and where shading is unavoidable you can add power optimisers or microinverters so each panel works independently. But the cheapest fix is layout: map where the shadows fall across the day and across the seasons first, and plan your panels into the parts of the roof that stay sunlit.

A worked example, end to end

Say the rear roof plane of a typical UK semi measures 8.0 m wide and 4.4 m up the slope (you measured 8.0 m across and a 3.4 m footprint at a 40° pitch, so 3.4 × 1.31 ≈ 4.4 m). That is about 35 m² of roof. Draw the 400 mm edge margin all round and you are left with roughly 7.2 m × 3.6 m of usable area.

In portrait, 7.2 m ÷ 1.15 m gives 6 columns, and 3.6 m ÷ 1.78 m gives 2 rows — so 12 panels. At 430 W each that is about 5.2 kWp, which comfortably suits a family home. Now check it against your demand: if our sizing guide said you wanted ~5 kWp, you are in luck — the roof fits the need. If it said 8 kWp, you have just learned that one roof plane cannot do it, and you need a second roof face, higher-wattage panels, or a revised target. That is the whole point of doing this maths before you get quotes.

Where DIY planning stops

Working out dimensions, area and layout is something any careful homeowner can do, and it makes you a much sharper buyer. Putting panels on the roof is not. An array adds a real load — roughly 15–25 kg per square metre once you count panels, rails and clamps — and MCS MIS 3002 requires the roof structure to be checked by a competent person before installation, with a structural engineer brought in for anything unusual. Working at height, the electrical connection and the grid notification are all jobs for an accredited installer, and an MCS-certified installation is also what unlocks payment for your exported electricity.

So use this guide to plan the layout and sense-check the number of panels, then hand the actual fit to a professional. From there, our guides to solar panel costs and savings and how many panels you need close the loop between what fits and what it is worth.
