Ground Mounted Solar Panels UK

Most UK homeowners put solar panels on their roof and never look back. But a growing number are choosing — or being pushed toward — ground mounted solar panels instead. Whether you have an unsuitable roof, a large garden, a barn or outbuilding, or simply want a system you can tilt to the optimal angle, a ground array is a legitimate and often overlooked option. This guide explains what ground mounted solar actually involves, what it costs, what the planning rules are, and whether it is likely to be worth it for you.

What is a ground mounted solar panel system?

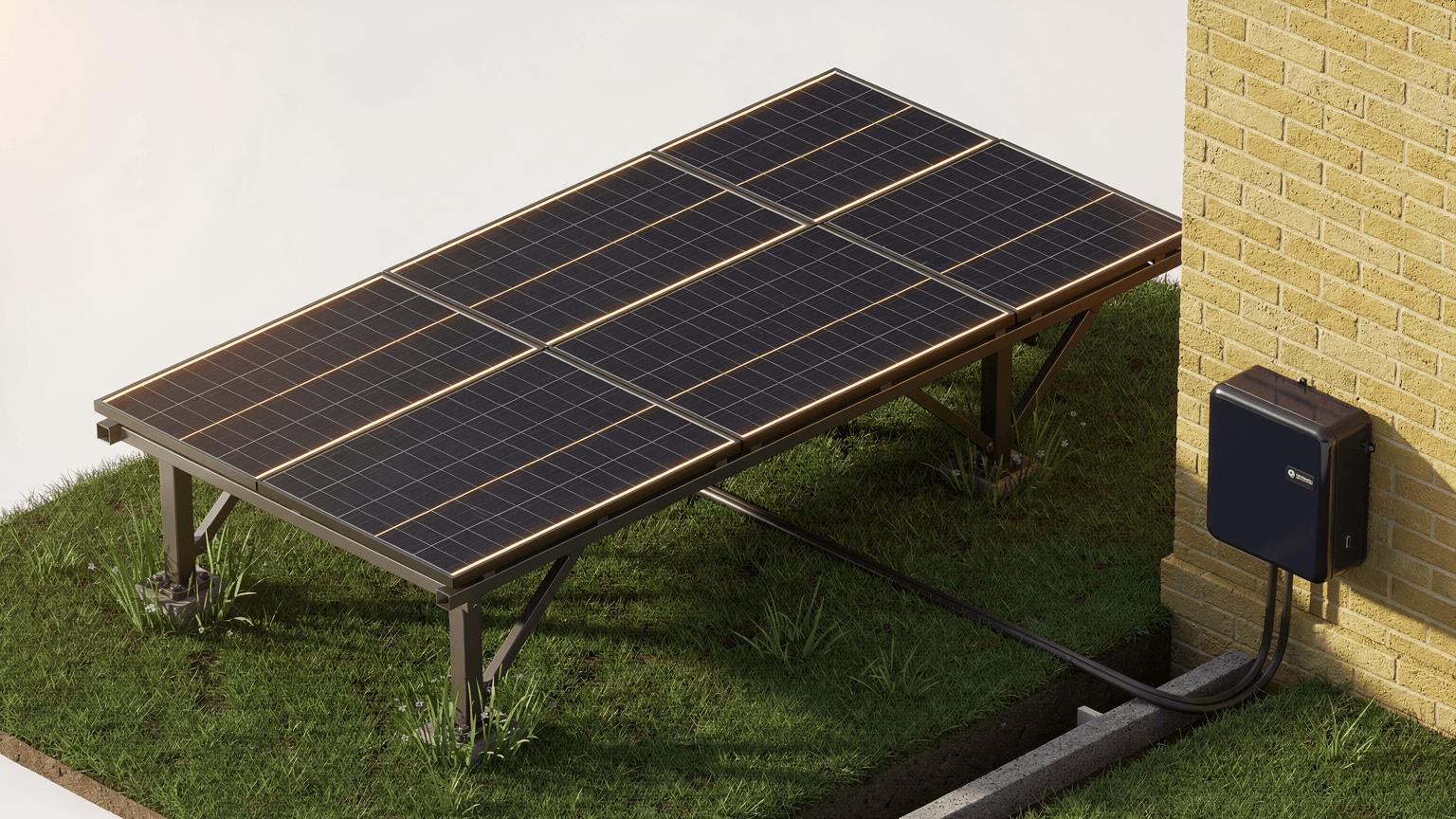

A ground mounted system places solar panels on a metal frame driven or concreted into the ground rather than fixed to a roof. There are two main frame types:

Ballasted or surface frames — a wide-based structure that sits on the ground without deep foundations, suitable for level, firm ground where the array is not tall.
Pole or pile-driven frames — metal posts driven into the ground, giving a raised array that can be tilted to a precise angle. These are more common for larger domestic or commercial installations.

Both types connect to the house via armoured cable run through a buried trench — typically at a depth of at least 600 mm — emerging at the consumer unit or a dedicated isolator. The inverter can be sited at the array, at the house, or at an intermediate point depending on cable length and voltage drop.

Panels, inverters, monitoring and battery compatibility work exactly the same as a roof install. String, hybrid and microinverter configurations are all available, and any certified system qualifies for the same tariffs and incentives.

When does a ground mount make sense?

A ground array is worth considering when at least one of the following applies:

Your roof is unsuitable — north-facing, heavily shaded, too steep or too shallow a pitch, structurally weak, or cluttered with rooflights and vents.
You have a large south-facing garden or paddock with sufficient clear space away from trees and buildings.
You own a barn, outbuilding, or agricultural structure where panels on the building roof are impractical but the adjacent land is available.
You want a tiltable array — ground frames can be set to any angle, which is useful for maximising winter output in northern regions of the UK.
You want to expand a roof system without disturbing existing panels or warranty arrangements.

If your roof is already suitable and large enough, a roof system will almost always be cheaper and simpler. Ground mounts earn their keep when the roof genuinely cannot do the job.

How much do ground mounted solar panels cost?

Expect to pay £1,000–£3,000 more than a comparable roof installation, owing to the additional groundwork, heavier mounting hardware, and cable trenching. In practice, a fully installed domestic ground mount of 4–6 kWp typically runs £9,000–£16,000 depending on system size, frame type, trench length, and the cost of any groundwork or planning application.

The biggest variable is cable trenching. A short run of 10–15 metres across a garden might cost around £1,500; longer runs of 50 metres or more across a paddock can exceed £5,000. For an accurate figure, ask your installer to quote trenching separately so you can compare.

For context on what a comparable roof system would cost, our guide to solar panel costs in the UK covers current pricing across different system sizes.

Planning permission for ground mounted solar panels

Planning permission is more likely to be required for a ground mount than for a roof installation. The Permitted Development rules in England (Schedule 2, Part 14 of the Town and Country Planning (General Permitted Development) (England) Order 2015) allow a stand-alone solar installation without planning permission only if it meets all of the following conditions:

The array is no more than 9 m² in total surface area (roughly four to five standard panels).
No part of the installation is higher than 4 metres.
No single horizontal dimension exceeds 3 metres.
The installation is at least 5 metres from the property boundary.
It is the first and only stand-alone solar installation on the property.

A 9 m² array is only large enough to generate around 1.5–2 kWp — far less than most households need. Most domestic ground mounts that are large enough to make a meaningful contribution will therefore require a planning application to the local planning authority (LPA).

Properties in Areas of Outstanding Natural Beauty (AONBs), National Parks, conservation areas, or World Heritage Sites face stricter requirements: prior approval or full planning consent may be needed regardless of array size, and visibility from highways is a key consideration. Listed buildings require both planning permission and listed building consent.

Scotland and Wales have equivalent devolved rules that follow a broadly similar pattern. Always confirm with your LPA before proceeding. For a full breakdown of how the rules apply to all solar types, read our guide to solar panel planning permission in the UK.

Output: does a ground mount perform better than a roof?

In ideal conditions, yes — a well-positioned ground array can generate 5–15% more electricity per kWp than a comparably sized roof system, for three reasons:

Optimal tilt and orientation — the frame can be set to the ideal angle (typically 30–40° in the UK) facing due south, regardless of the roof pitch or orientation.
Better ventilation — panels run cooler when air circulates underneath them; high temperatures reduce efficiency by approximately 0.3–0.5% per degree Celsius above 25°C for standard silicon panels.
Easier shading avoidance — the array position can be chosen to avoid the shadows from trees, chimneys and neighbouring buildings that often affect rooftop installs.

In practice, the shading picture on the ground matters too — trees grow, boundaries change, and a low winter sun can cast long shadows even from a relatively modest obstacle. A good installer will run a shading analysis at your proposed location before committing to a frame position.

MCS certification and the Smart Export Guarantee

Ground mounted systems must be designed and installed by an MCS-certified installer to qualify for the Smart Export Guarantee (SEG). The MCS rules do not distinguish between roof and ground installations — the same certification standard applies. Ofgem requires MCS certification for SEG registration, so using a non-certified installer forfeits export payments for the life of the system.

Under the SEG, licensed suppliers with more than 150,000 customers are obliged to offer an export tariff to eligible generators. Rates vary by supplier; our guide to SEG best rates in 2026 covers the current offers. Once registered, a smart meter capable of half-hourly export readings is required to claim payments.

Zero VAT applies to domestic solar panel installations (including ground mounts) under current HMRC guidance on energy-saving materials — the same rate that applies to roof-mounted systems.

Is a ground mounted system worth it?

If your roof is genuinely unsuitable, a ground mount is often the only way to access the savings that solar can deliver — and in that context, the additional cost is usually justified. The £1,000–£3,000 premium over a roof system is recovered over a slightly longer period, but the fundamentals (reduced bills, export income, 25-year panel warranties) remain the same.

The main practical hurdles are planning permission for larger arrays and cable trenching costs for distant installations. Both are manageable with the right installer and a little upfront planning. Get at least two or three quotes from MCS-certified installers who have ground mount experience — not all rooftop specialists are comfortable with the groundwork side.

To weigh up the overall case for solar on your property, our guide to whether solar panels are worth it in the UK covers the financial picture in detail.
