Solar Pergolas and Garden Solar Structures

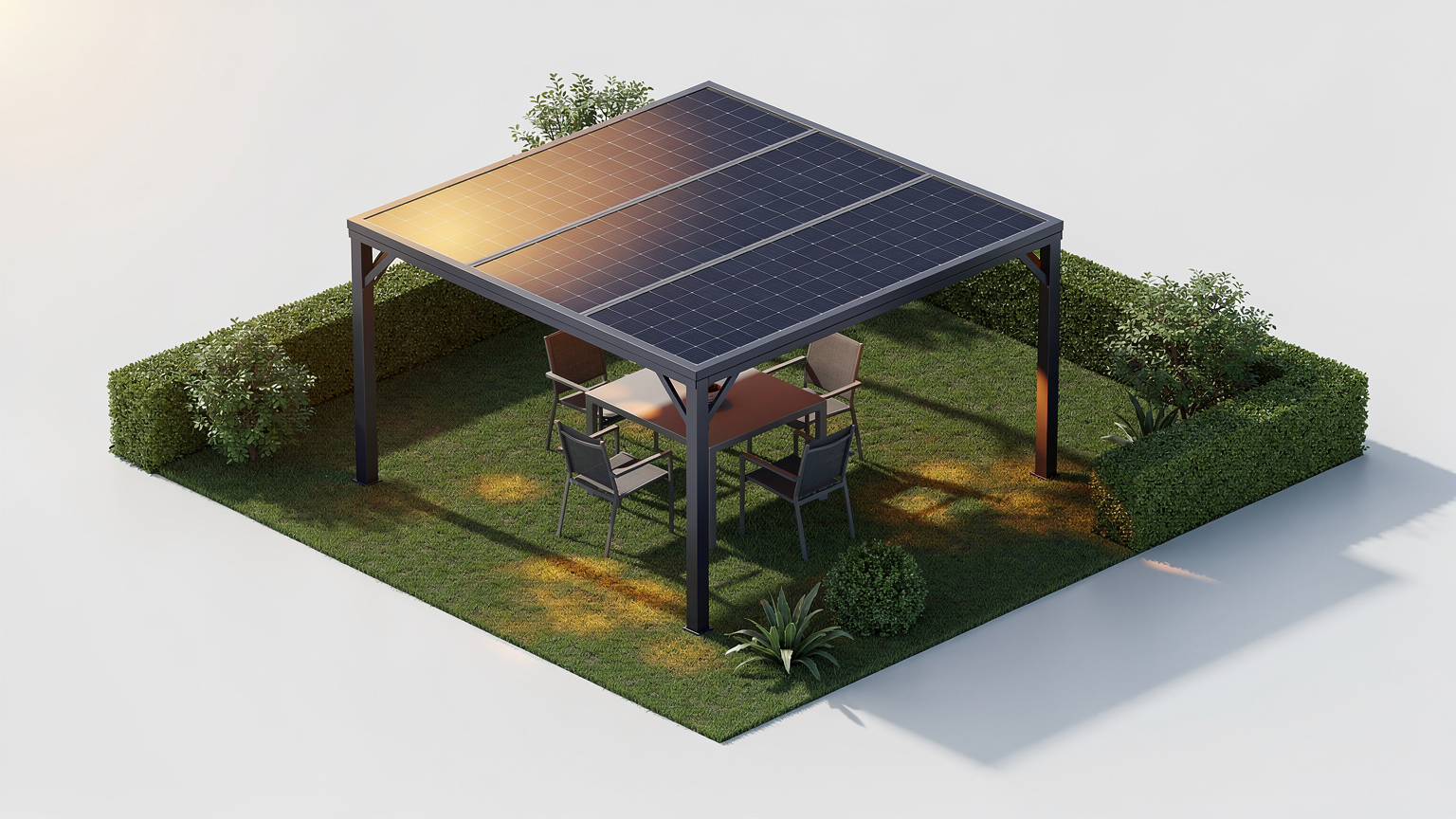

A solar pergola is a garden structure where solar panels serve as the roof — providing dappled shade for an outdoor seating area while simultaneously generating electricity for your home. It is one of the most practical ways to add solar capacity when your roof is already full, unsuitably oriented, or shaded by trees. With a typical 1–3 kWp system producing 850–2,600 kWh per year in the UK, a well-sited pergola can meaningfully cut electricity bills and reduce carbon emissions without touching your roof at all.

What is a solar pergola?

A standard pergola is an open garden structure — four posts, a beam frame, and a slatted or solid canopy. A solar pergola replaces that canopy with a matrix of solar PV panels, usually mounted flat or at a shallow pitch on a custom aluminium frame. The result performs two jobs at once: it creates a comfortable shaded outdoor area and it feeds electricity into your home consumer unit via a cable run from the structure.

Because pergola-mounted panels typically sit at a flatter angle than the 30–35° ideal for UK roof panels, they capture less energy per panel than a south-facing roof array at the same orientation. However, a flat or near-flat east-west layout collects meaningful morning and afternoon sun across a longer daily window, which can partially offset the reduced peak-hour performance. Using bifacial solar panels — which generate electricity from their rear face as well as the front — can recover an additional 10–20% output in a pergola setting, because ground-reflected light (albedo) reaches the underside of panels more readily than it would on a roof.

Typical system size and output

Most garden pergolas accommodate between four and eight standard 400–430 W panels, giving a system capacity of roughly 1.6–3.4 kWp. In the UK, a south-facing 3 kWp system produces approximately 2,400–2,700 kWh per year, though a flat-mounted pergola array will generate somewhat less — expect 15–25% below a comparably sized tilted roof system. Annual bill savings of £160–£270 are achievable for a three-to-five-panel pergola system, according to industry estimates, though savings rise substantially if you pair the array with a home battery or use a smart solar diverter to heat water.

The exact output depends on orientation, shading, panel quality, and local irradiance. Pergolas facing due south with minimal shade can approach standard roof performance. Those in partially shaded gardens, or facing east/west, will produce less but still generate useful power. You can model your location's expected output for free using the PVGIS tool from the European Commission. For a broader view of system sizing against household demand, see our guide to how many solar panels you need.

Planning permission: what the rules say

In England, most solar pergolas fall under two overlapping sets of permitted development (PD) rights, meaning no planning application is required for the majority of straightforward installations.

The pergola structure itself

A pergola is treated as an outbuilding under Schedule 2, Part 1, Class E of the Town and Country Planning (General Permitted Development) (England) Order 2015. Provided the structure meets the following conditions, it does not need planning permission:

Maximum eaves height of 2.5 metres (regardless of total height).
Maximum overall height of 3 metres (flat or lean-to roof) or 4 metres (dual-pitched or hipped roof).
If sited within 2 metres of a boundary, the entire structure must not exceed 2.5 metres high.
Total ground coverage of outbuildings must not exceed 50% of the garden area (excluding the original house footprint).
Must not be positioned forward of the principal elevation of the house.

The solar panels on the pergola

Once a pergola is lawfully erected under Class E, solar panels attached to it are generally permitted under Schedule 2, Part 14, Class A of the same Order, which covers solar PV equipment on buildings within the curtilage of a dwelling. The panels must not project more than 200 mm beyond the surface of the structure, and the installation must be sited to minimise its impact on amenity. Standalone ground-mounted arrays are covered under Class B (which caps panel area at 9 m² per installation and requires a 5-metre setback from boundaries) — but a pergola-integrated system is a building-mounted array, so the more generous Class A conditions typically apply.

Important exceptions: Permitted development rights do not apply to listed buildings (Listed Building Consent required), buildings in conservation areas (additional restrictions under Article 4 directions are common), or properties in World Heritage Sites. Scotland, Wales, and Northern Ireland have separate planning frameworks — always check with your local planning authority if you are outside England or if you are unsure.

Structural requirements

Solar panels add significant dead load to a pergola. A standard 430 W monocrystalline panel weighs roughly 20–23 kg; eight panels add over 180 kg to the structure before wind and snow loads are considered. A professionally engineered aluminium or hot-dip galvanised steel frame is essential — a timber pergola kit bought at a garden centre will almost certainly be inadequate without significant reinforcement.

For larger structures (above roughly 30 m² footprint or in exposed locations) your installer may recommend a structural engineer's calculation to satisfy the insurer and, where relevant, building control. The panels' frames must also be correctly bonded to the main electrical earth for safety.

Grid connection

A solar pergola connects to your home's consumer unit via a buried armoured cable run from the structure — typically a 6 mm² SWA (steel wire armoured) cable buried at the correct depth to comply with BS 7671 wiring regulations. The inverter (usually a string inverter or microinverters mounted on the pergola frame) converts DC output to AC and feeds via the consumer unit in the same way as any rooftop system. Depending on total installed capacity and grid connection type, your installer will submit a G98 or G99 notification to your Distribution Network Operator (DNO). You are also eligible to register for the Smart Export Guarantee (SEG) once the system is installed by an MCS-certified installer, receiving payment for any surplus electricity exported to the grid.

Cost

Total installed cost for a solar pergola in the UK ranges from approximately £3,000 to £12,000, depending on whether you are adding panels to an existing structure or commissioning a new bespoke build. Industry estimates break this down roughly as:

New pergola structure only: £1,500–£8,000 (materials and erection).
Solar panels and inverter: approximately £350–£700 per panel installed.
Electrical cable run to consumer unit: £200–£600 depending on distance and groundworks.

A four-panel (1.7 kWp) entry-level installation on a modest existing structure sits at the lower end; a bespoke eight-panel system on a new architect-designed steel pergola can reach or exceed the upper limit. These costs are separate from any battery storage you may wish to add — see our full breakdown of solar panel costs in the UK for context on how pergola pricing compares with a standard rooftop system.

Bifacial panels: worth it on a pergola?

Bifacial panels generate electricity from both the front and rear face. On a rooftop, the rear gain is minimal because the panel sits close to the roof surface. On a pergola — elevated above grass, pale paving, or gravel — reflected light from the ground reaches the rear cells more effectively. Studies suggest rear-side gains of 10–20% are realistic in good conditions, partially compensating for the flatter mounting angle. Bifacial panels cost around 5–15% more than equivalent monofacial models, so for most pergola applications the payback makes sense, particularly on light-coloured or reflective ground surfaces.

Choosing an installer

Not all solar installers have experience with ground-level or pergola-mounted systems. Look for an MCS-certified installer who can also demonstrate structural fabrication experience or partner with a metalwork specialist. Get at least three quotes that itemise the structure, the panels, the inverter, the electrical cable run, and the DNO notification separately. Only an MCS-certified installation qualifies for the Smart Export Guarantee.
