Half-Cut Solar Cell Technology: What It Means for Your Panels

If you have been comparing solar panels recently, you will have noticed phrases like half-cut cells, 120-cell, or 144-cell on spec sheets. These are not marketing terms — they describe a real manufacturing change that affects how your panels perform on a shaded UK roof, on a hot summer day, and over their 25-year lifespan. This guide covers exactly what half-cut cell technology is, why it matters, and what to look for when choosing panels for your home.

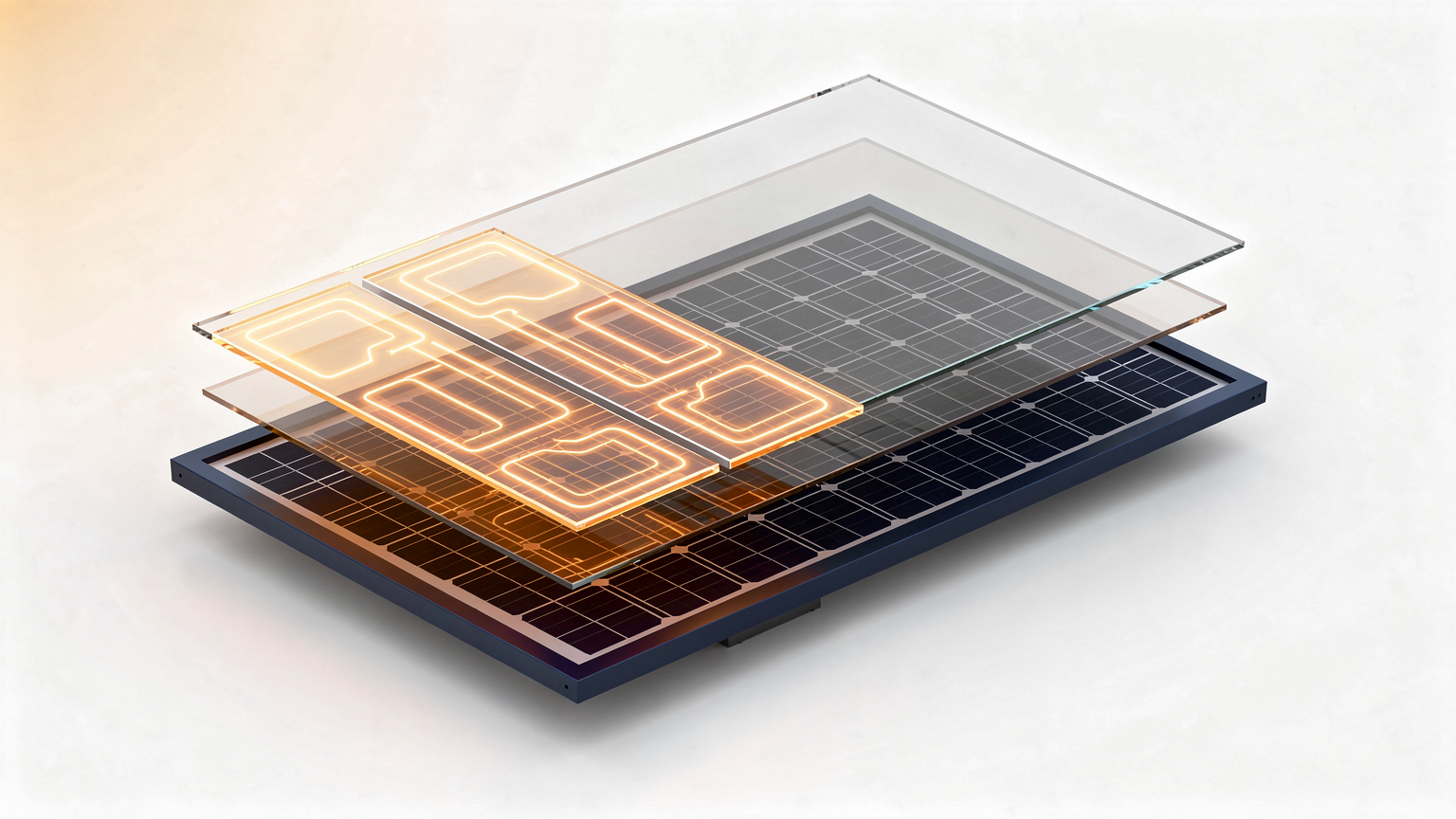

What are half-cut solar cells?

A conventional solar cell is a roughly 166 mm square (or 182 mm in the newer M10 format) slice of silicon. In a half-cut panel, a precision laser scores each cell cleanly across the middle, producing two rectangular halves roughly 83 mm tall. The panel therefore contains twice as many cells as a traditional design: a standard 60-cell module becomes a 120-cell module, and a commercial 72-cell module becomes a 144-cell module.

The cut itself does not change the silicon chemistry. What changes is the geometry of current flow — and that single change has a cascade of useful consequences.

Why halving the current matters: the I²R effect

Electrical resistive losses follow the formula P = I² × R, where I is current and R is resistance. When you cut a cell in half, each half-cell produces the same voltage as the original but carries only half the current. Because the loss term scales with the square of current, halving I reduces resistive losses to one quarter of their original value — a 75% reduction in I²R losses per cell.

Across a full module, this means less energy is wasted as heat in the metal fingers, busbars, and ribbon interconnects that conduct electricity from cell to cell. Independent testing consistently shows a real-world efficiency gain of approximately 0.5–3% relative over equivalent full-cell modules of the same cell technology, with 2–3% being the most commonly cited figure for like-for-like comparisons.

How the panel is wired: two independent halves

Half-cut panels do not simply double the cell count and wire everything in series. The panel is split into a top half and a bottom half, each containing its own string of series-connected half-cells. These two sub-strings are then connected in parallel at the junction box (the same series-vs-parallel principle covered in our solar panel wiring guide) — or, in many modern designs, via two separate junction boxes mounted at the top and bottom edges of the frame.

This parallel architecture is what gives half-cut panels their well-known shading advantage. In a traditional full-cell panel, a bypass diode protects roughly one-third of the module at a time. Shadow a single cell in one of those thirds and the entire third goes dark, cutting output by around 33%. In a half-cut panel, the bypass diodes protect one sixth of the module at a time. The same shadow therefore affects only about 17% of total output rather than 33% — in practice the difference between a panel producing 250 W and one producing 330 W on a partially shaded winter afternoon.

For UK rooftops this matters more than in sunnier climates. Chimneys, dormer windows, vent stacks, and neighbouring roof lines create partial shade conditions that persist for hours in autumn and winter mornings. Our guide to string inverters vs microinverters vs power optimisers covers how inverter choice interacts with shading; but even at the panel level, half-cut cells give you a meaningful head-start.

Lower operating temperature

Because I²R losses are converted to heat inside the module, reducing those losses also lowers the panel's operating temperature. This matters because all solar panels suffer from a negative temperature coefficient — typically between −0.30% and −0.45% per °C above 25 °C (the STC test temperature). A panel running at 55 °C rather than 65 °C on a summer afternoon holds onto an extra 3–4.5% of its rated output. In the UK this benefit is modest compared to hotter climates, but it is a genuine free gain that compounds with the reduced resistive losses.

Half-cut cells vs full-cell panels: a direct comparison

Half-cut vs multi-busbar (MBB): not the same thing

These two technologies are often confused because they frequently appear together in the same panel. They address different problems. Half-cut technology reduces the current each cell carries, slashing external interconnect losses. Multi-busbar (MBB) technology increases the number of thin copper conductor lines from the traditional 3–5 busbars to 9–18 or more, reducing the current path length within the cell and distributing mechanical stress to reduce micro-cracking.

Modern premium panels — the LONGi Hi-MO, JA Solar DeepBlue, and Canadian Solar HiKu series that dominate UK installer order books in 2026 — combine both: half-cut cells for external loss reduction plus multi-busbar interconnection for internal loss reduction. The two improvements are complementary, which is why they have been adopted together rather than in isolation.

Does half-cut technology require a different inverter or installation?

No. Half-cut panels connect to a string inverter, microinverter, or power optimiser exactly as full-cell panels do. The panel's output is standard DC voltage and current; the only visible difference to the installer is the position of the junction box connectors. No re-configuration, different cable gauge, or special commissioning is required. If you are choosing between panel models for a new installation, check our guide to the best solar panels available in the UK to compare specific products side by side.

Is half-cut technology now standard in the UK market?

Effectively yes. As of 2025–2026, virtually every tier-1 residential panel shipped to the UK uses half-cut cells as a baseline. Full-cell modules are still available in commercial utility-scale formats, but for home installations the question is rarely whether a panel uses half-cut cells — it is which additional technologies (TOPCon, N-type silicon, bifacial glass) are layered on top. When reviewing quotes, you are more likely to be choosing between PERC half-cut and TOPCon half-cut than between full-cell and half-cut.

Understanding the cell architecture helps you evaluate those choices. If your roof has any shading at all — and most UK rooftops do — the independent-half wiring of a half-cut module provides a meaningful floor of protection that does not depend on power optimisers or microinverters. For a complete picture of system costs, see our breakdown of solar panel costs in the UK.
