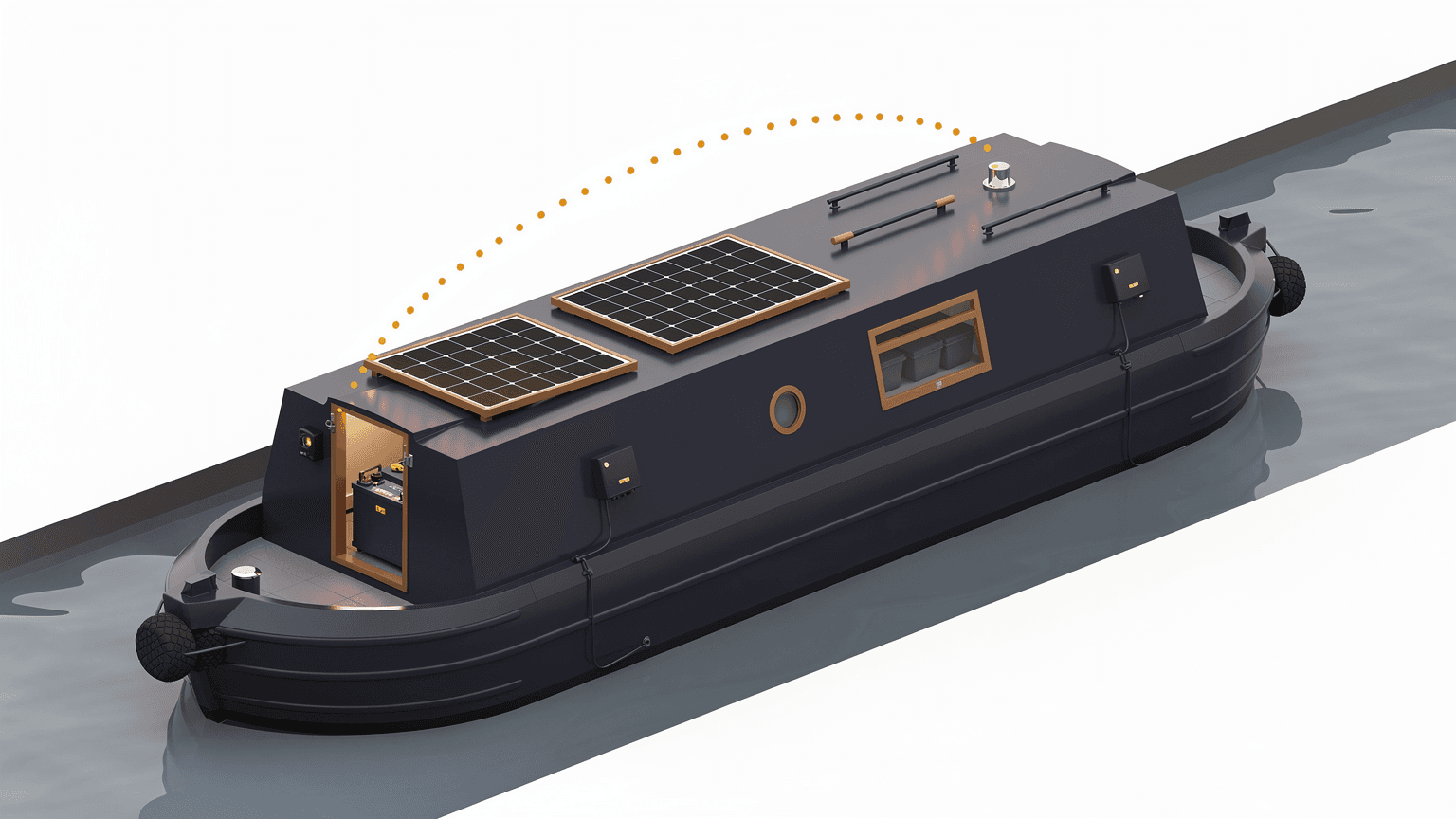

Solar Panels for Boats and Marine Use UK

Solar power has become the energy source of choice for thousands of UK boaters. On inland waterways a well-sized solar array lets narrowboats and canal boats run lights, a compressor fridge, a TV, phone charging, and a 12V water pump for weeks without needing shore power or running the engine solely to charge batteries. On coastal waters and estuaries, solar supplements a sailing yacht's electrical demands during long passages. Whether you cruise the Kennet & Avon in spring or winter on a residential mooring, understanding the right system for your boat saves money and frustration.

Types of boat that benefit most

Narrowboats and canal boats are the biggest beneficiaries of solar in the UK. A typical liveaboard or continuous-cruising narrowboat runs a 12V or 24V DC system fed by a leisure battery bank — most commonly 400–440Ah of AGM or LiFePO4 capacity. Day-to-day loads (LED lighting, a 12V compressor fridge, a small inverter for laptops and a TV) typically draw 80–120Ah per day. A 400W solar array — four 100W panels or two 200W panels — is widely regarded as the sweet spot for 3-season cruising on UK waterways, replenishing most of what was drawn overnight on a good spring or summer day.

Sailing yachts and motor cruisers often have less flat deck area and more shade from rigging, making panel placement more creative. Yacht owners commonly mount flexible or semi-rigid panels on a bimini top, a stern arch, or a cockpit spray hood. Motor cruisers with a large flybridge have more unobstructed space and can support a substantial rigid array.

Motorboats and river cruisers used seasonally benefit from a modest 100–200W array that maintains battery health between uses and powers bilge pumps, navigation lights, and instruments at the mooring.

Rigid vs flexible marine solar panels

Rigid panels deliver the best efficiency (typically 20–22% for monocrystalline PERC cells) and the longest service life — often 20-plus years. Because mounting frames create an air gap beneath the panel, heat dissipates better, and output stays closer to rated power on warm days. Rigid panels are the preferred choice for narrowboat cabin roofs, stern platforms, and yacht arches where the surface is flat or near-flat.

Flexible panels can conform to curved surfaces such as a bimini canvas or a rounded coachroof. They weigh less and create no windage when lying flat. The trade-off is that heat builds up against the surface they are bonded to, reducing efficiency and, over time, panel life. ETFE-coated flexible panels resist UV and saltwater far better than cheaper PET alternatives and are the recommended choice for marine use. Expect a shorter working life of 10–15 years under heavy UV exposure.

Both panel types should carry an IP67 or IP68 waterproof rating for any marine application — this confirms the junction box and connectors can withstand water immersion, not merely spray. Anti-reflective toughened glass on rigid panels also reduces glare that could dazzle other waterway users, a practical safety benefit on busy summer canals.

System design: 12V vs 24V

Most narrowboats run a 12V domestic system, which is straightforward to design and uses widely available components. As arrays grow beyond 400W, or if cable runs from roof to battery are long, a 24V system halves the current, allowing thinner — cheaper — cable and reducing voltage-drop losses. Many modern MPPT controllers and inverter-chargers handle both voltages, making a future upgrade to 24V relatively painless.

The rule of thumb for cable sizing on 12V systems is to use 4mm² or 6mm² MC4-terminated solar cable for panel-to-controller runs. Undersized cable on a 12V system turns energy into heat and can be a fire risk — an important point for BSS compliance.

MPPT charge controllers

MPPT (Maximum Power Point Tracking) controllers extract up to 30% more energy than older PWM controllers, particularly in the variable cloud conditions that characterise UK summers. The Victron SmartSolar MPPT range is the most widely used choice among UK boat owners: it offers built-in Bluetooth for monitoring via the VictronConnect app, fast tracking that responds well to passing cloud, and a wide input voltage range that accommodates panels wired in series. The 75/15 model suits arrays up to 220W on a 12V bank; the 100/30 covers up to 440W. Larger arrays on 24V systems step up to the 150/45 or 150/60.

The controller should be mounted inside the boat, close to the battery bank, and protected by an appropriately rated fuse on both the panel input and battery output sides — a requirement for passing the Boat Safety Scheme (BSS) examination.

BSS electrical requirements for solar installations

Any boat using UK inland waterways must hold a valid BSS certificate, issued after a four-yearly examination by an accredited BSS examiner. Part 3 of the BSS Standards covers electrical installations and is specifically designed to minimise the risk of short circuits and cable overheating — the leading cause of boat fires.

For solar, the key BSS requirements are: every power source (including the solar array) must be protected by a correctly rated fuse positioned as close to the source as possible; cables must be adequately sized for the current they carry; and DC isolators or breakers should be fitted to allow safe maintenance and emergency isolation. The full checking requirements are published on the official BSS website. While BSS is not a design standard in the way that building regulations are, an examiner will fail an installation with undersized cables, unfused connections, or unsafe routing of DC wiring.

The Canal & River Trust, which administers most of England and Wales's inland waterway licence requirements, encourages low-carbon boating and recognises solar as part of reducing engine hours and emissions on the network.

UK seasonal performance — what to expect

The UK's solar resource is modest in winter but usable from roughly March to October. A 400W array on a narrowboat can realistically produce 1.2–2.0 kWh on a typical spring or summer day and as little as 0.3–0.6 kWh on a dull November day. Most liveaboards rely on shore power or generator top-up from November to February. Spring and autumn are adequate for daytime-only loads; summer days often produce a full charge by early afternoon, leaving surplus energy that can run an inverter for AC appliances. For a broader understanding of how panel output varies month by month, see our guide to solar panel output in the UK.

Keeping panels clean matters more on a boat than on a house roof — dust, bird droppings, pollen, and canal-side tree debris accumulate quickly and can reduce output by 10–20%. A soft cloth and warm water every two to three weeks during cruising season is usually sufficient.

Battery storage: AGM vs lithium

Traditional sealed AGM leisure batteries remain common on narrowboats because of their low upfront cost and robustness, but they should only be discharged to 50% of rated capacity to preserve cycle life. A 440Ah AGM bank therefore delivers roughly 220Ah of usable capacity. LiFePO4 (lithium iron phosphate) batteries offer 80–90% usable depth of discharge, significantly more energy in the same physical footprint, and three to five times more charge cycles. They are increasingly popular on liveaboard boats where weight saving and longevity justify the higher initial outlay. For a detailed comparison of storage chemistries, read our home battery storage guide.

Shore power integration

Most narrowboats also carry a 240V shore power inlet (a 16A BS EN 60309 blue caravan plug is standard) that feeds a battery charger when connected to a marina bollard. A combined inverter-charger (such as the Victron MultiPlus range) handles both roles — inverting 12V/24V DC to 230V AC when off-grid, and charging the battery bank when shore power is available. This allows seamless switching between solar and grid charging, keeping the battery bank topped up during a winter layover without any manual intervention.
