Solar Thermal Panels UK: How They Work, Costs and Is It Worth It (2026)

Solar thermal panels are often confused with solar PV panels, but they do a fundamentally different job. PV panels generate electricity; solar thermal panels use the sun's energy to heat water. The result is lower fuel use and modest annual savings — around £160 per year for a typical gas-heated household, or around £230 per year if you're currently using an electric immersion heater. Those figures are from the Energy Saving Trust, based on November 2025 energy prices.

The technology works, and it does reduce carbon emissions. But the market has contracted sharply: only 173 MCS-certified solar thermal systems were installed across the whole of the UK in 2024. For context, more solar PV systems are fitted on a quiet Monday. The reason is largely financial — and one practical barrier that trips up many households before they even get to the numbers. Read on for the full picture before requesting quotes.

The combi boiler problem

Solar thermal systems require a separate hot water cylinder — and around half of UK homes have a combi boiler, which heats water on demand and has no cylinder. If your home has a combi boiler, you would need to either convert to a conventional boiler system with a twin-coil cylinder, or keep the combi and add a separate pre-heat vessel — both of which add significant cost and disruption. This alone rules out solar thermal as a straightforward fit for many households. Check your setup before going further.

How solar thermal panels work

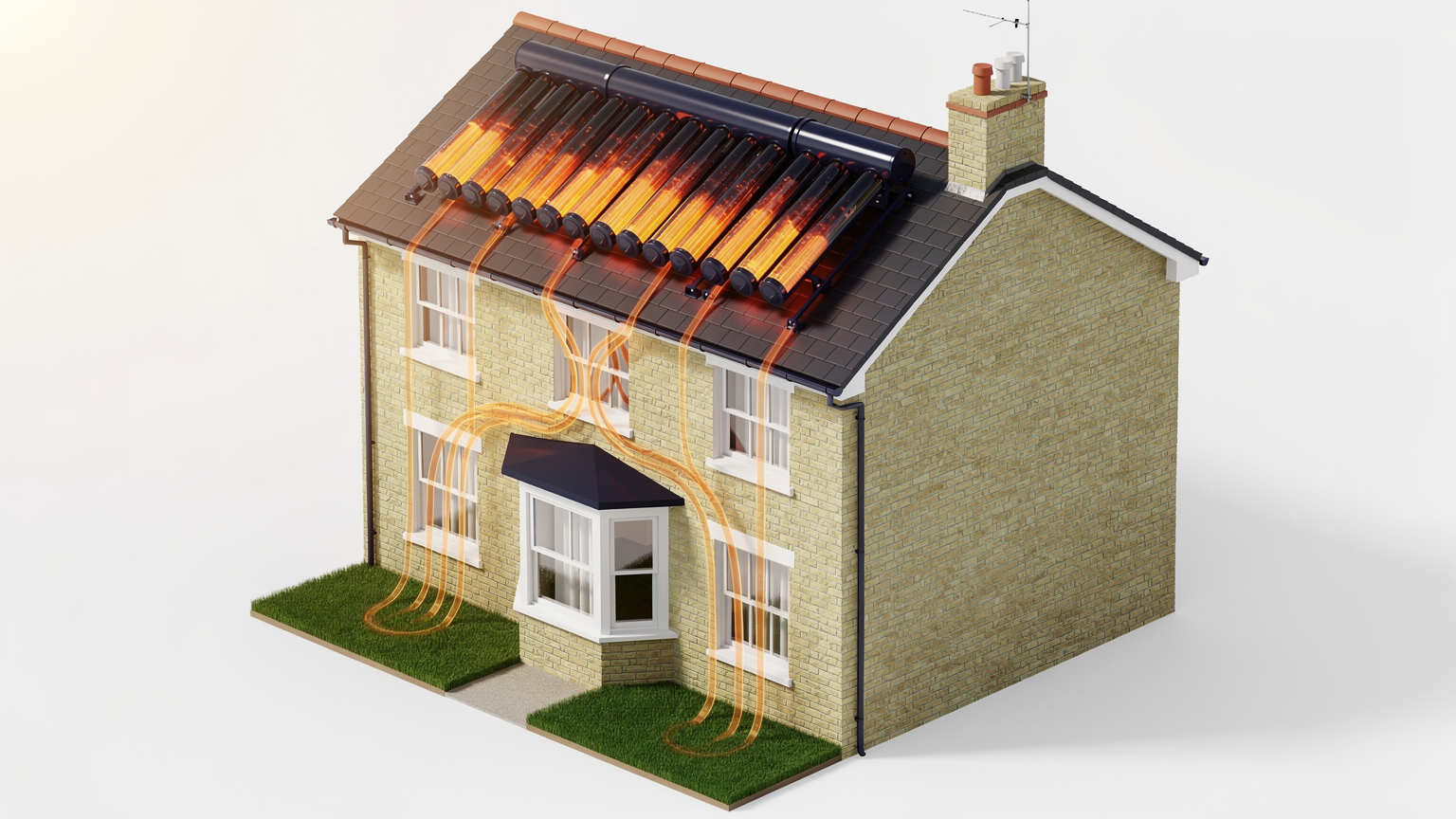

A solar thermal system has three main parts: the roof collectors, a twin-coil hot water cylinder, and a pump circulation loop. The collectors absorb solar energy and transfer it to a water-glycol antifreeze mixture, which a small pump circulates around a closed loop. Inside the cylinder, the heated glycol passes through the lower coil, warming the stored water. Your boiler or immersion heater connects to the upper coil and tops up the temperature as needed — typically during winter evenings or prolonged cloudy periods.

A differential temperature controller runs the pump only when the collectors are hotter than the tank. When they're cold — at night or in heavy cloud — the pump stops. The glycol is rated to −25°C, so freeze risk is eliminated.

Flat plate vs evacuated tube collectors

Two collector types are used in UK installations, and for most British homes evacuated tubes perform better year-round.

Flat plate collectors are a dark absorber plate behind glass, insulated at the back. They are durable, lower-cost, and perform well in direct summer sun. In the overcast, cold conditions that dominate UK winters, performance drops more than with evacuated tubes.

Evacuated tube collectors use rows of glass tubes, each with a vacuum-sealed layer around the absorber. The vacuum eliminates convection heat loss, so they maintain better output in cold and cloudy conditions — important in a country where around 75% of solar irradiation is diffuse rather than direct. Evacuated tubes cost slightly more to supply and install, but the performance advantage in a UK climate makes them the better default choice.

How much hot water can you realistically expect?

Energy Saving Trust field trials of 88 UK installations found that well-installed systems provided around 39% of annual hot water demand on average, with the best-performing homes reaching 60%. Modelled estimates typically cite 50–60%, but real-world performance consistently falls short of modelled figures due to suboptimal sizing and orientation.

The seasonal split is stark: around 90% of hot water needs in summer, dropping to about 25% in winter. A backup heat source is always required. The best results go to families of four or more with a south-facing roof, an existing twin-coil cylinder, and high hot water demand. Single-occupant homes and homes with east or west-facing roofs will see lower contributions.

What does solar thermal cost in the UK?

A typical installed domestic solar thermal system costs between £4,000 and £6,000. The Solar Trade Association puts a standard twin-coil cylinder system at around £4,500. The Energy Saving Trust uses approximately £6,000 as a representative full-system figure, which includes a new cylinder where one isn't already in place. VAT is currently zero-rated on solar thermal installation in residential properties — a saving that applies until 31 March 2027, when the rate reverts to the reduced 5% rate.

If you already have a compatible twin-coil cylinder, costs fall toward the lower end of the range. If you need a new cylinder — and if you're converting from a combi system, budget more still for the additional plumbing work.

Annual savings and payback

The Energy Saving Trust estimates annual savings of around £160 for gas boiler households and around £230 for homes with electric immersion heating (based on November 2025 energy prices). The higher saving from electric displacement reflects the higher per-unit cost of electricity.

At £160 per year against a £6,000 installation, simple payback is around 37 years — beyond the system's 20–25 year lifespan. Against a £4,000 installation with an existing cylinder, payback is around 25 years. Which? (May 2026) frames solar thermal for gas-heated homes primarily as a carbon-reduction measure rather than a financial investment: the numbers don't work within the system's useful life for most gas users.

The picture is more favourable for electric immersion homes: at £230 per year on a well-priced installation, payback can reach around 10–15 years — within the system's life. Off-gas homes (oil or LPG) also see stronger returns because they're displacing a more expensive fuel.

Solar thermal vs solar PV: which is right for you?

For the majority of UK homes, solar PV wins on financial grounds. A solar PV system generates electricity that can run appliances, charge an EV, export to the grid for SEG income, and heat water via a solar diverter device (around £300–£500 extra) — all from one installation. Solar thermal can only heat water. See our full guide to whether solar panels are worth it in the UK for a detailed financial comparison.

Solar thermal is worth serious consideration if:

• You heat water with electricity (electric immersion) or off-gas (oil, LPG) — the savings and payback are materially better.
• You already have a south-facing roof with a twin-coil cylinder and cannot accommodate a PV array.
• You have a large household with very high hot water demand.
• Your primary goal is carbon reduction rather than financial return.

For households who are adding solar PV anyway, a solar diverter is usually the most cost-effective way to use surplus generation for hot water — without the complexity or the combi boiler compatibility issue. If water heating is your primary concern without solar PV, a modern heat pump water heater may outperform solar thermal year-round; see our guide to the best air source heat pumps UK.

Grants, VAT and financial support

There is no dedicated government grant for solar thermal panels in England in 2026. The Boiler Upgrade Scheme (BUS) explicitly covers air source heat pumps, ground source heat pumps, and biomass boilers — solar thermal is not on the list. For the full picture of what solar-related support currently exists, see our UK solar grants guide.

The meaningful financial perk is 0% VAT. HMRC's VAT Notice 708/6 confirms that solar thermal installations — collectors, pipework, pump, cylinder, control panel and heat exchanger — qualify for the zero rate when professionally installed in a residential property. The zero rate runs until 31 March 2027 and then reverts to 5%.

If you live in Scotland, Home Energy Scotland offers interest-free loans up to £5,000 for solar thermal to owner-occupiers, with up to 10 years to repay. In Wales, Green Homes Wales lists solar thermal as an eligible measure — 0% interest unsecured loans from £1,000 to £25,000 — though the scheme has been oversubscribed; check current availability with the Development Bank of Wales.

Planning permission and installation

Solar thermal panels on a domestic roof in England are generally permitted development — no planning application needed. The same rules that apply to solar PV apply here: panels must not protrude more than 0.2 metres beyond the roof plane. In conservation areas, panels cannot be installed on a wall or roof slope facing a highway. Listed buildings require listed building consent.

Ensure your installer holds MCS accreditation (check at mcscertified.com). An MCS-certified installer will assess roof orientation, shading, and household hot water demand before quoting and will issue an MCS installation certificate within 10 days of commissioning. Ongoing maintenance is more involved than solar PV: most manufacturers recommend annual inspections and glycol testing every three to seven years.
