Ground Source Heat Pump UK: Cost, Pros, Cons and When to Choose Over Air Source

Ground source heat pumps remain something of a best-kept secret in UK home heating. While air source heat pumps have dominated the retrofit conversation, a ground source system delivers higher and more consistent seasonal efficiency — typically SCOP 3.5 to 4.5 — because it draws heat from ground temperatures that stay stable at 10–12°C all year rather than from winter air that can plunge below zero. The trade-offs are a higher upfront cost and the need for a garden large enough to lay pipes. This guide unpacks exactly what a ground source heat pump costs, what the installation involves, how it compares to air source, and which homes stand to benefit most.

What is a ground source heat pump?

A ground source heat pump (GSHP) extracts solar energy stored in the earth and upgrades it to useful heating temperatures using a refrigeration cycle. A loop of pipe — filled with an antifreeze mix — circulates through the ground, absorbs the ambient warmth of the soil or rock, and passes it through a heat exchanger inside the house. The heat pump unit then uses electricity to compress the refrigerant, raising the temperature further before distributing heat through your radiators or underfloor heating and an insulated hot water cylinder.

Because the ground acts as a thermal store — absorbing solar radiation throughout the year — it stays at a near-constant 10–12°C even in January. That means the heat pump is never working against bitterly cold air, which is the key reason GSHPs outperform air source systems in the coldest months.

Horizontal loop vs vertical borehole: which do you need?

There are two main ways to lay the ground collector, and the right choice depends on your plot size and ground conditions.

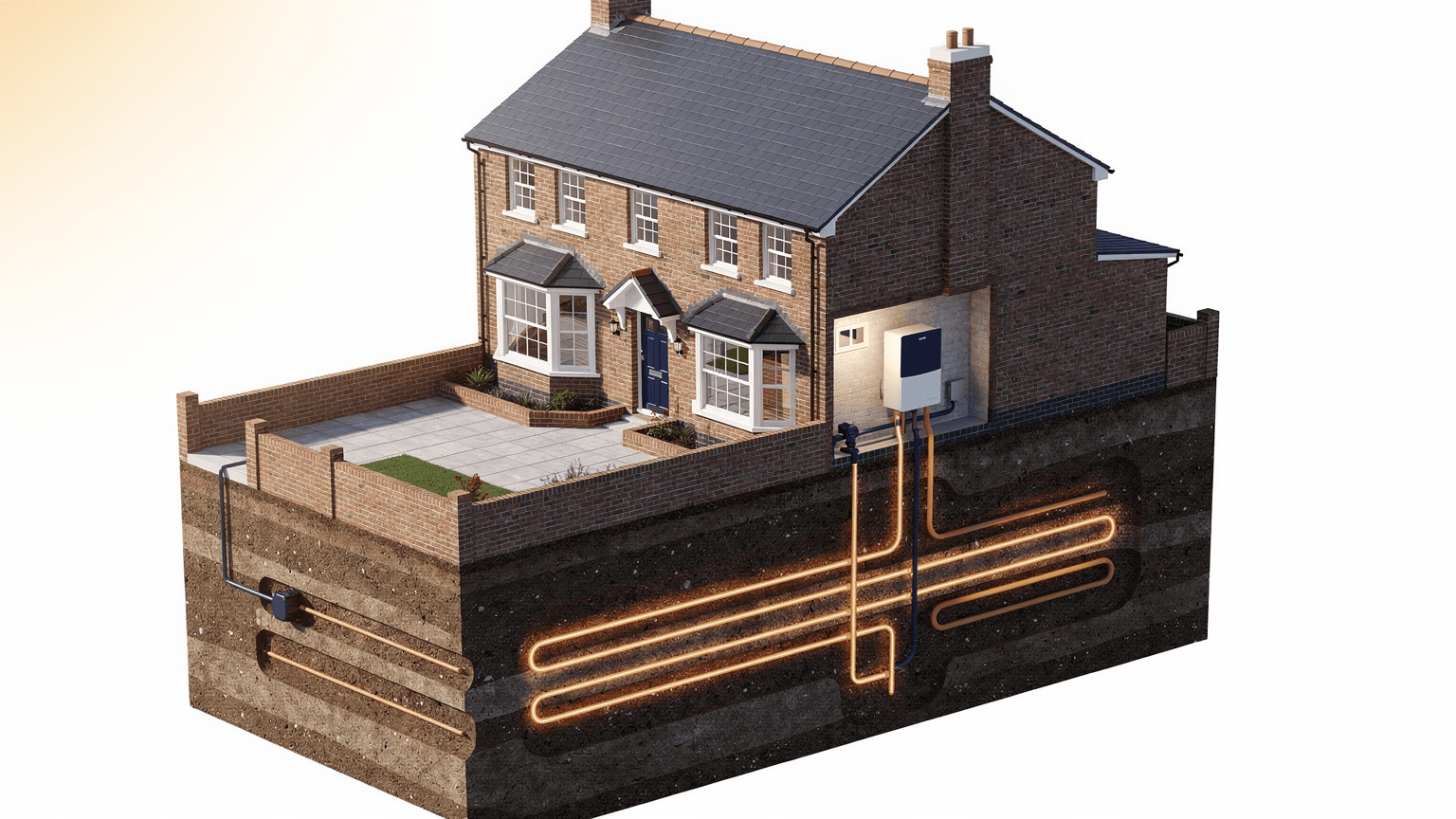

Horizontal ground loops (trenches)

Pipes are laid in trenches at 1.2–2 m depth across your garden. A rule of thumb is that the loop area needs to be roughly 1.5–2 times the heated floor area of your home — so a 100 m² house typically needs 150–200 m² of trench area. This approach is less expensive because it requires only a mini-digger rather than specialist drilling equipment, but it is disruptive (your lawn will be dug up and will take a season to recover) and it is simply not viable on small urban plots.

Typical cost for horizontal installation (loop + groundworks only): £5,000–£10,000.

Vertical boreholes

Where land area is limited, a specialist drilling rig bores one or more holes to depths of 50–150 m. The borehole collector reaches deeper, warmer, and more consistent ground temperatures, which can push efficiency slightly higher than horizontal loops. Drilling is expensive — roughly £1,000–£2,000 per metre including the collector pipe — so a single 100-metre borehole adds £10,000–£20,000 to the project cost. Most domestic installations use one or two boreholes. Boreholes deeper than 15 m require an environmental permit from the Environment Agency in England to protect groundwater.

Typical cost for vertical borehole installation (drilling + collector): £10,000–£25,000.

Ground source heat pump UK cost breakdown (2026)

Total installed cost varies significantly depending on the collection method, house size, and whether internal pipework and emitters need upgrading. Expect the following ranges:

The main cost components are:

• Heat pump unit: £5,000–£12,000 depending on output (leading brands include Kensa, NIBE, Vaillant, and Bosch).
• Ground collector (loop or borehole): £5,000–£25,000 — the biggest variable.
• Internal works: hot water cylinder £700–£1,500; pipework, controls, and commissioning £2,000–£4,000; radiator upgrades if needed £1,000–£3,000.
• MCS survey and design fee: typically included in installer quotes; required for BUS eligibility.

The Boiler Upgrade Scheme (BUS), administered by Ofgem, provides £7,500 off a ground source heat pump installation in England and Wales. Your MCS-certified installer applies on your behalf and deducts the voucher from your invoice before you pay. The scheme runs until 31 March 2028.

Efficiency: what SCOP means in practice

The Seasonal Coefficient of Performance (SCOP) measures how many kilowatt-hours of heat a system delivers for every kilowatt-hour of electricity it consumes across the full year. A SCOP of 4.0 means you get 4 kWh of heat for every 1 kWh of electricity — 400% efficient in conventional terms.

The Energy Saving Trust's heat pump field trial, published on GOV.UK, found ground source systems achieved a mean seasonal performance factor of around 2.8–3.4 across UK residential installations in the trial cohort, with the best-designed, well-insulated installs reaching above 3.5. Modern MCS-certified systems in suitable properties routinely target SCOP 3.5–4.5.

Why ground beats air on efficiency: air source heat pumps must work harder in winter when outdoor temperatures drop — at −5°C, a typical ASHP's COP falls to around 2.0–2.5. A ground source system drawing from 10–12°C ground maintains a COP of 3.5 or above throughout the heating season, which translates directly into lower electricity bills during the months your heating runs hardest.

Running costs compared to gas and air source

At Ofgem's Q2 2026 price cap — electricity 24.67p/kWh, gas 5.74p/kWh — a well-installed GSHP in a properly insulated home costs broadly similar to or slightly less than a modern gas boiler to run. For a three-bedroom semi with 10,000 kWh annual heat demand:

• GSHP at SCOP 4.0: 10,000 ÷ 4.0 = 2,500 kWh electricity × 24.67p = £617/yr
• ASHP at SCOP 3.0: 10,000 ÷ 3.0 = 3,333 kWh electricity × 24.67p = £822/yr
• Gas boiler at 90% efficiency: 10,000 ÷ 0.9 × 5.74p = £638/yr

A ground source pump at SCOP 4.0 can therefore beat gas running costs even at today's unfavourable electricity-to-gas price ratio — something an air source pump at typical SCOP 3.0 cannot yet achieve. On a dedicated heat pump tariff such as Octopus Cosy (offering off-peak windows at reduced rates), annual running costs drop further by £150–£300.

For a deeper comparison of heat pump running costs, see our heat pump running costs guide.

Ground source vs air source heat pump: how to choose

For most UK homeowners, an air source heat pump is the practical default — lower cost, minimal groundworks, and broadly equivalent whole-year performance. Ground source becomes the better choice in specific situations. Here is the honest comparison:

Choose ground source if: you have adequate garden space or access for boreholes; you plan to stay in the property long-term (15+ years) to amortise the higher capital cost; noise is a concern (the indoor unit is near-silent); or you want maximum winter efficiency with no cold-snap penalty. Rural properties with large plots, off-grid homes (oil or LPG), and well-insulated detached or large semi-detached houses are ideal candidates.

Stick with air source if: your budget is tighter; your garden is small or inaccessible; you need a faster, less disruptive installation; or the property may be sold within a decade (ASHP is more universally understood by buyers and valuers). For the full picture on how a heat pump stacks up against staying on gas, read our heat pump vs gas boiler comparison.

Is a ground source heat pump right for your home?

There are four conditions that make a GSHP installation most likely to succeed. Tick all four and you have a strong case; miss two or more and an air source pump is almost certainly the better starting point.

1. Adequate land: horizontal loops need roughly 1.5× your floor area in usable garden; if you have a small urban plot, boreholes are the only viable option and add significant cost.
2. Good or upgradeable insulation: heat pumps work at lower flow temperatures (35–45°C vs a gas boiler's 60–70°C), so walls, loft, and floor insulation need to retain heat effectively. An EPC rating of C or above is a reasonable benchmark.
3. Underfloor heating or oversized radiators: low-temperature emitters are best suited to GSHP output; if you have standard small radiators, budget for upgrades or specify a higher-flow-temperature heat pump (less efficient).
4. Underfloor heating and heat pumps: the combination works especially well with GSHPs because of the consistently low flow temperatures involved. Our underfloor heating and heat pumps guide covers why UFH is the ideal emitter, what retrofit involves, and when oversized radiators are a practical alternative.
5. Long ownership horizon: the higher capital cost only makes financial sense if you live in the property long enough for the efficiency advantage to compound. A 10–15 year horizon is usually the minimum.

Planning permission and legal requirements

Ground source heat pumps are generally permitted development in England, meaning no planning application is needed for most domestic installations. The heat pump unit is installed indoors, so there are no noise or visual-amenity conditions equivalent to those applied to air source units. However, boreholes that exceed 15 m depth require an environmental permit from the Environment Agency to protect groundwater sources — your MCS-certified installer is responsible for checking this and applying if needed.

In Scotland, ground source installations fall under Class 6HC permitted development; conditions differ slightly, and you should confirm with your local planning authority if the property is listed or in a conservation area. Wales follows broadly similar rules to England.

All ground source heat pump installations must be carried out by an MCS-certified installer and issued with an MCS installation certificate for BUS grant eligibility and to ensure the system can be registered on the MCS database.

Key questions to ask your installer

• Have you conducted a full MCS heat loss survey (not just a floor-area estimate)?
• Is the ground loop sized to the calculated heat loss, not a rule of thumb?
• Does your quote include an unvented hot water cylinder and commissioning?
• Will you apply for the Environment Agency environmental permit if boreholes exceed 15 m?
• What monitoring and controls are included so I can track SCOP in operation?
